MADWORKS - Spin Blades (incline) (N-006)

MADWORKS - Spin Blades (incline) (N-006)

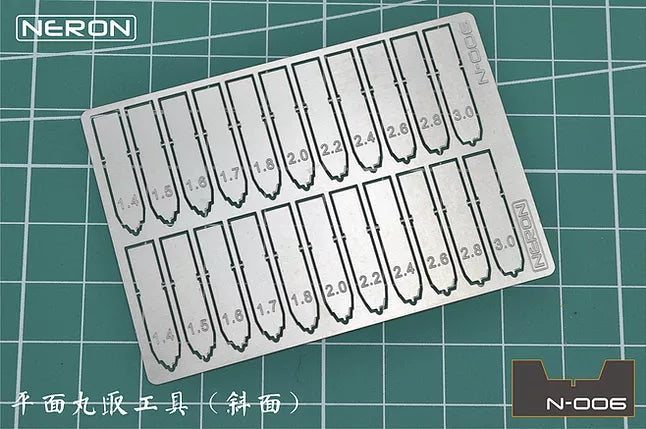

These tools are a collection of photo-etched blades (1.4mm 1.5mm 1.6mm 1.7mm 1.8mm 2.0mm 2.2mm 2.4mm 2.6mm 2.8mm 3.0mm) designed to create pivot holes on model kits:

1. Use a regular 0.5mm drill bit and drill the central point where the pivot hole will be;

2. Pin the tip of the blade to this central pin, then spin the blade to cut through the surface.

3. Add details using Neron N-004, or other MADWORKS large selections of detail-up parts.

N-003 and N-006 differs in the shape of the edge of pivot holes.

It can also be used N004-Neron Photo Etched Detailing Rivets.

Note: This type of fixture is a consumable, and cannot be as durable as a drill !

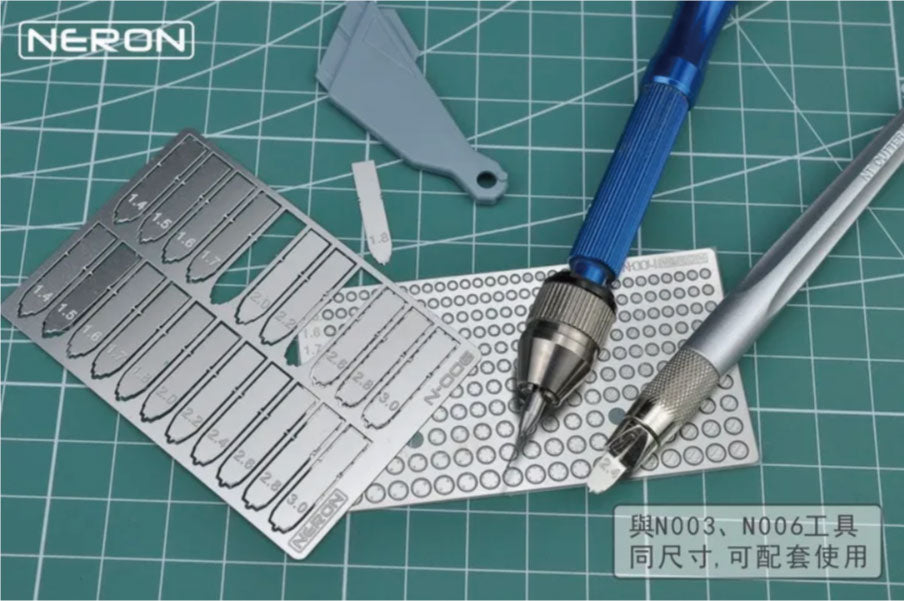

Suggestion: Attached the spin blade to a drill-bit handle. This way is easier to operate

​
